J-H(st)H: LSZH Screened Telephone Cable

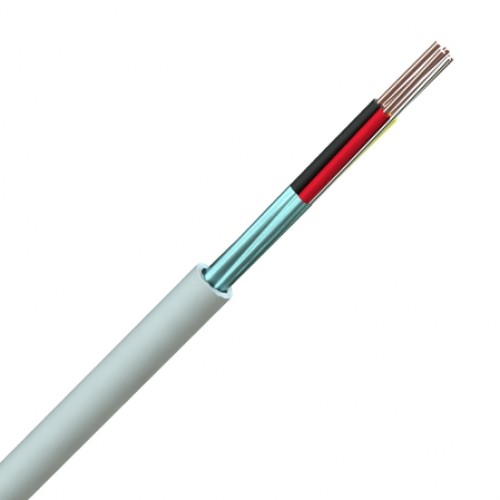

H; LSZH Screened Telephone Cable-500x500.jpg "J-H(st)H: LSZH Screened Telephone Cable")
| J-H(st)H: LSZH Screened Telephone Cable |
| Originally manufactured in Germany for internal wiring in sensitive areas. The major differences are, this cable is LSZH throughout, screened, come in 0.6mm or 0.8mm conductor size and has completely different core identification. Now it became popular for wiring everything from intercom and nurse call systems. |
| Construction |
| Plain copper wire conductors to IEC 60228 class 1, LSZH insulation, overall foil screen in contact with plain copper drain wire, LSZH sheath – grey. |
| Technical Information | |
| Operating Voltage: | 300V |
| Stranding: | Solid conductor to IEC 60228 Class 1 |
| Operating Temperature: |
-30oC to +70oC (Static) -5oC to +50oC (Flexing) |
| Bending Radius: | Fixed 7,5xOD |
| Flame Retardant: | IEC 60332-3-24 Cat A |
| Halogen Emission: | IEC 60754-2, BS EN 50267 |
| Smoke Emission: | IEC 61034-2, BS EN 50268 |
| Print Product Data Sheet |
| Part No. | Size (mm2) | Weight (kg/km) | OD (mm) |
| SC31000602H | 2x2x0,6 | 45 | 5,0 |
| SC31000603H | 3x2x0,6 | 55 | 6,4 |
| SC31000604H | 4x2x0,6 | 65 | 6,6 |
| SC31000605H | 5x2x0,6 | 75 | 7,3 |
| SC31000606H | 6x2x0,6 | 85 | 7,5 |
| SC31000608H | 8x2x0,6 | 95 | 8,0 |
| SC31000610H | 10x2x0,6 | 115 | 10,1 |
| SC310006100H | 100x2x0,6 | 850 | 24,0 |
| SC31000612H | 12x2x0,6 | 130 | 10,4 |
| SC31000616H | 16x2x0,6 | 155 | 11,0 |
| SC31000620H | 20x2x0,6 | 200 | 12,1 |
| SC31000624H | 24x2x0,6 | 225 | 13,2 |
| SC31000630H | 30x2x0,6 | 285 | 14,0 |
| SC31000640H | 40x2x0,6 | 355 | 15,1 |
| SC31000650H | 50x2x0,6 | 440 | 17,3 |
| SC31000660H | 60x2x0,6 | 510 | 19,2 |
| SC31000680H | 80x2x0,6 | 650 | 21,3 |
| SC31000802H | 2x2x0,8 | 65 | 7,0 |
| SC31000803H | 3x2x0,8 | 85 | 8,6 |
| SC31000804H | 4x2x0,8 | 105 | 9,1 |
| SC31000805H | 5x2x0,8 | 125 | 9,6 |
| SC31000806H | 6x2x0,8 | 150 | 11,2 |
| SC31000808H | 8x2x0,8 | 180 | 11,7 |
| SC31000810H | 10x2x0,8 | 225 | 13,3 |
| SC310008100H | 100x2x0,8 | 1800 | 33,0 |
| SC31000812H | 12x2x0,8 | 255 | 14,0 |
| SC31000816H | 16x2x0,8 | 320 | 16,1 |
| SC31000820H | 20x2x0,8 | 385 | 17,0 |
| SC31000824H | 24x2x0,8 | 470 | 19,1 |
| SC31000830H | 30x2x0,8 | 570 | 20,9 |
| SC31000840H | 40x2x0,8 | 715 | 23,2 |
| SC31000850H | 50x2x0,8 | 900 | 26,2 |
| SC31000860H | 60x2x0,8 | 1050 | 28,1 |
| SC31000880H | 80x2x0,8 | 1450 | 31,6 |
J-H(St)H also comes with a red outer jacket for identifying permitted fire alarm systems, please put ‘03’ at the end of the part number to specify this cable.
